Emtron Shadow 8 ECU – Whitey's Wiring, Brisbane
The Shadow 8 packs Emtron's tuning software and motorsport features into a compact ECU, a strong option for builds that want Emtron quality in a smaller package.

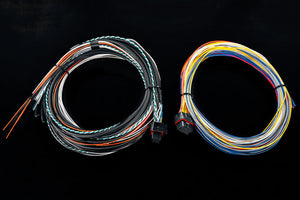

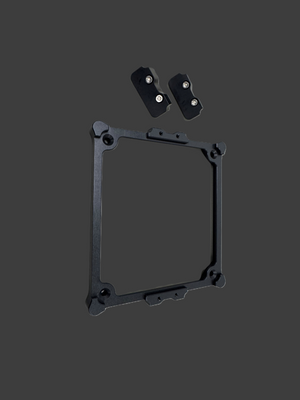

We wire, install and dyno tune Emtron ECUs at our Clontarf workshop. The Shadow 8 wiring harness and mounting kit are also listed on our site.
Complete your install
Emtron Shadow 8
$2,145.00
We don't hold stock of every item, so most products are ordered in especially for your order.
Emtron’s Shadow 8 is a wire in ECU with a high level of flexibility. This ECU will support up to 8 Channels of fully sequential Fuel and Ignition. Every unit is housed in a durable billet Aluminium enclosure and includes 16MB permanent memory for on-board logging, DBW control, USB C Communications and Knock control up to 2 channels to name a few.
Power Supply
- Operating Voltage: 6.0 to 22.0 Volts DC (ECU shutdowns at 24.0V)
- Operating Current: 290mA at 14.0V (excluding sensor and load currents)
- Reverse Battery Protection via External Fuse
- “Smart” battery transient protection
Operating Temperature
- Max operating range: -30 to 110°C (-22 to 230°F)
- Recommended operating range: -30 to 85°C (-22 to 185°F)
Physical
- Aluminium 6061 grade CNC billet enclosure
- Enclosure size 152 mm x 139 mm x 26 mm
- Weight: 520g
- Connector system: 68-way Super Seal waterproof connectors with gold plated contacts
- Pin diameter: 1 mm
- Current rating: maximum 15A per pin (wire gauge dependant)
- Connector A: 34 pin Key 2 Super Seal
- Connector B: 34 pin Key 1 Super Seal
Internal
- 100MHz processor
- 500Mb DDR RAM (0.5Gb)
- 16MB ECU logging memory. Over 1200 channels available, 1Hz to 500Hz logging rate
