Nexus S3 ECU + Plug and Pin Set HT-213100

Haltech Nexus S3 + Plug and Pin Set – Whitey's Wiring, Brisbane

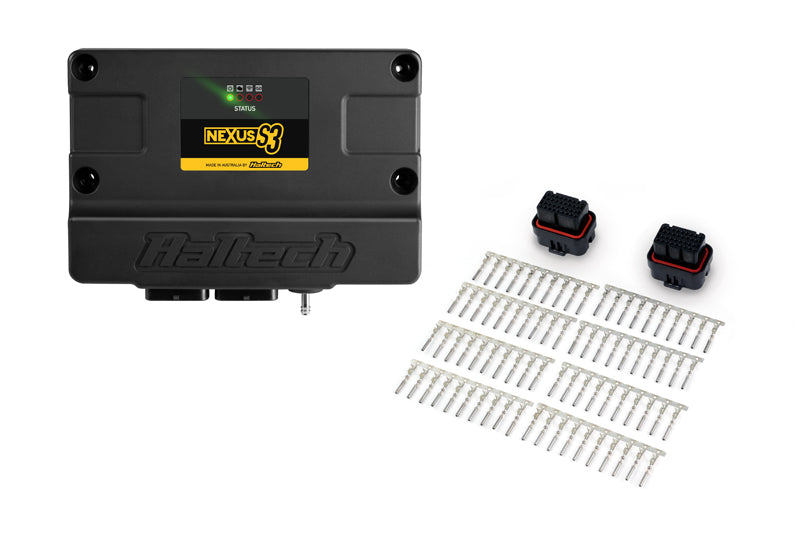

This kit combines the Nexus S3 ECU with Haltech's plug and pin set, for builders making their own harness from scratch. Buying the ECU and wiring together means everything matches and you're ready to start your install.

We've been a Haltech dealer for over 10 years, and custom wiring is what we do every day. Not sure whether a flying-lead harness or plug and pin set suits your build? We can help you decide.

Complete your install

Haltech WB2 Bosch Dual Channel CAN Wideband Kit HT-159986Haltech - WB2 Bosch - Dual Channel CAN O2 Wideband Controller Kit HT-159986$795.00
Haltech iC-7 Colour Display Dash HT-067010Haltech - Haltech iC-7 Colour Display Dash HT-067010$1,795.00
Haltech CAN Keypad 8 Button (2x4) HT-011501Haltech - Haltech CAN Keypad 8 button (2x4) HT-011501$540.00
Haltech Flex Fuel Composition Sensor HT-011000Haltech - Flex Fuel Composition Sensor HT-011000$299.00
Haltech Nexus tube mount kit 31.75mmNexus R3 / S3 / S2 Tube Mount Kit - 31.75mm (1.25") HT-039065$199.00
Haltech Elite CAN Hub 4 Port DTM-4 HT-159000Haltech - Elite CAN HUB 4 Port DTM-4 HT-159000$199.00

Nexus S3 ECU + Plug and Pin Set HT-213100

$3,347.00

We don't hold stock of every item, so most products are ordered in especially for your order.

Suits: Engines with up to 8 cylinders or up to 4 rotors. Racing applications where advanced race features and data logging is required.

Includes: Nexus S3 ECU, 4 x mounting bolts, USB-C Cable, USB-C dust cap, Quick Start Guide, Wiring Diagram.

ECU OVERVIEW

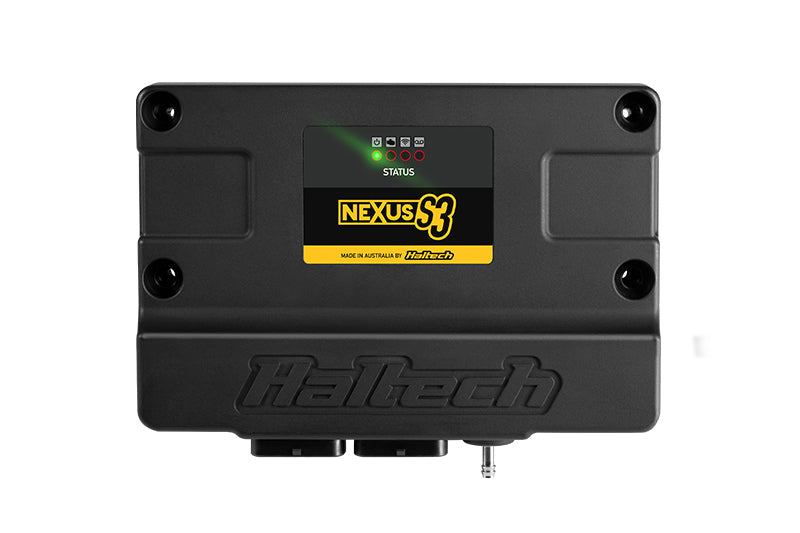

Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination

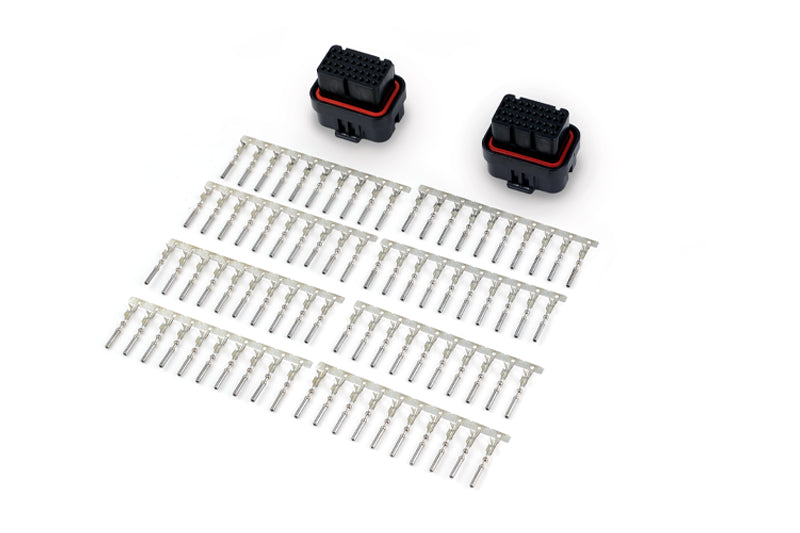

Superseal connector
  • 34 Pin (Key 3) Plug and Pins
  • 34 Pin (Key 2) Plug and Pins



ECU FEATURES
  • Controlled via NSP (Nexus Software Programmer)
  • Long Term Learning
  • Stepper Motor Control
  • 4D Closed Loop Boost Control
  • Closed Loop CO2 Control
  • Rotational Idle
  • Launch Control
  • Traction Control
  • Anti-Lag
  • Dual Knock Control
  • Trans Brake Control
  • Race Timer
  • Multi Stage Fuel Injection
  • Multi-level Engine Protection
  • 6 Stage Nitrous Control
  • 4-sensor variable cam control
  • Intake Air Bleed Control
  • Flat Shift Control
  • Shock Travel & Ride Height Control
  • Advanced Torque Management
  • On-board Wi-Fi
  • On-board datalogging (128MB)
AUTOMATIC TRANSMISSION CONTROL
  • Ford AODE/4R70W
  • GM 4L60E
  • GM 4L80E
  • Toyota A340E
  • Lenco
  • Liberty
